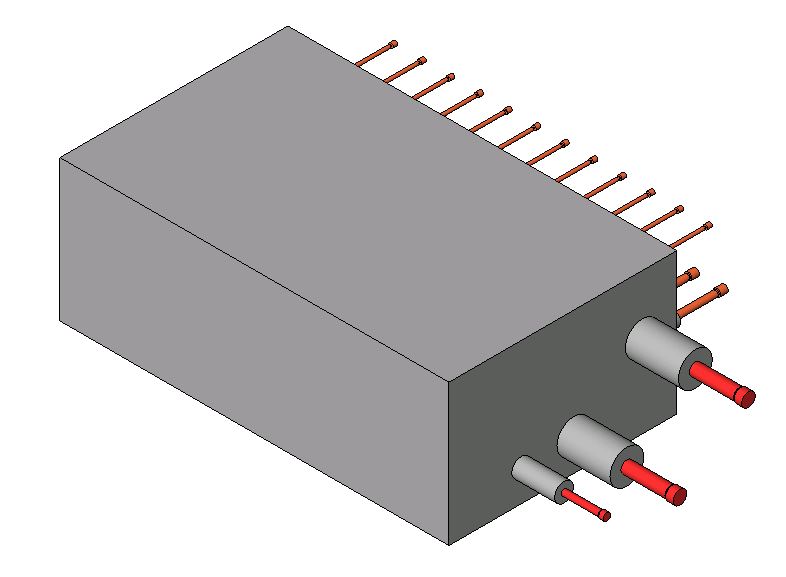

Multi port branch selector box for use with VRV-IV heat recovery systems.

Daikin branch selector boxes provide ultimate flexibility when designing a heat recovery system. Mix and match single port branch selector boxes and multi port branch selector boxes on the same system to best suit the building.

  • Available in 36 Mbh, 60 Mbh, and 96 Mbh capacities
  • Available in 4, 6, 8, 10, and 12 ports
  • Serve up to 54 Mbh per port
  • Ultimate flexibility - mix and match single port and multi port branch selector boxes on the same system
  • No limitation on the number of unused ports per box
  • No condensate drain required
  • 208-230V / 1Ph / 60 Hz
Unit of Measure

Model Type

 N/A Branch Selector Box

Power Supply

 N/A 208/230 V, 60 Hz, 1 phase

Number of Ports

 N/A 12

Maximum Capacity Index of Connectable Indoor Units

 N/A 290 or less

Maximum Capacity Index of Connectable Indoor Units per Branch

 N/A 54 or less

Maximum Number of Connectable Indoor Units

 N/A 41

Maximum Number of Connectable Indoor Units per Branch

 N/A 5

Number of Branches

 N/A 12

Casing

 N/A Galvanized steel plate

Sound Absorbing Thermal Insulation Material

 N/A Urethane foam, Polyethylene foam

Operating Sound Level

 N/A 40 dBA

Max. Sound Level

 N/A 48 dBA

Weight

 N/A 48 kg106 lb

Height

 N/A 11-3/4 in298 mm

Width

 N/A 32-5/16 in820 mm

Depth

 N/A 18-15/16 in480 mm

Pipe Connections Indoor Unit - Liquid

 N/A 1/4 in3/8 in

Pipe Connections Indoor Unit - Gas

 N/A 1/2 in5/8 in

Pipe Connections Outdoor Unit - Liquid

 N/A 5/8 in

Pipe Connections Outdoor Unit - Suction Gas

 N/A 1 1/8 in

Pipe Connections Outdoor Unit - HP/LP Gas

 N/A 1 1/8 in

Standard Accessories

 N/A Accessory pipes, Clamps, Insulation tube, Vinyl tube, Installation manual

N/A

  • Individual control and changeover with extended range of product offerings - 4, 6, 8, 10 and 12 port options.
  • Up to 54 MBH capacity per port.
  • Lower sound levels thanks to simplified mechanical design, when compared to VRV III models.
  • Ultimate design flexibility - single and multi-port units can be combined in one system.
  • Quick installation due to fewer brazing points and less wiring.
  • Unlimited number of unused ports per box or system.
  • Low built-in height.
  • No drain piping needed.
  • Standard Limited Warranty: 10-year warranty on all parts.
